Price: $759 excl

Price: $759 excl

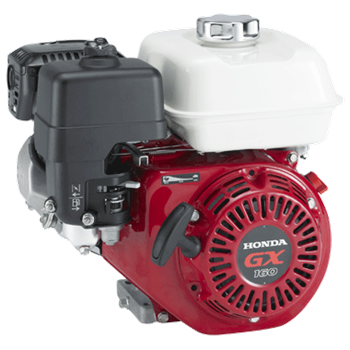

Engine Type: GX160
Fuel Capacity: 3.1 Litres

Given our huge range of Honda small engines please contact us about other options



QUALITY AND PERFORMANCE COME STANDARD

Honda’s GX series engines are legendary for superior reliability and performance and the GX160 is no exception. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance.

Being the Flagship model in Honda's world-renowned GX Engine range, the GX160 can be used in all sorts of applications. Pressure washers and construction/industrial equipment, generators and commercial lawncare equipment; its uses are wide ranging.

FUEL EFFICIENT WITH HIGH OUTPUT

The GX160's Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency. It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.



EASY TO USE AND MAINTAIN

A ball bearing-supported crankshaft and precision engineered components result in greater stability and lower vibration for you, no matter what the application.

The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine that incorporates a large capacity, multi-chamber exhaust system.

And with a simple throttle control, large fuel tank and automotive type fuel cap, dual oil drains and fills, an easily accessible spark plug and heavy duty recoil starter your engine will be easy to upkeep.

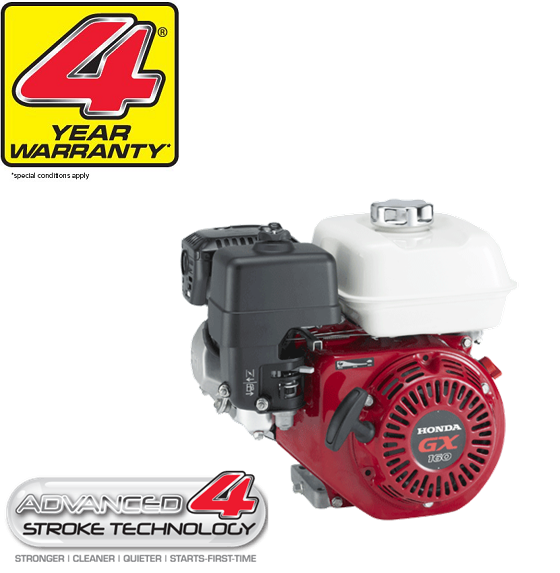

WARRANTY

This Honda product comes with a 4-year domestic warranty* and with regular servicing by a Honda authorised dealer and using Genuine Honda Spare Parts it will work hard for many years.

Honda has a comprehensive dealer network that covers all of New Zealand with highly trained technicians and knowledgeable sales staff to help you make the right choice first time.


CONDITIONS OF WARRANTY



Contact us  or enquire below



MODEL

GX160

TYPE

4-stroke, overhead valve, single-cylinder, horizontal shaft

BORE & STROKE

68 x 45mm

DISPLACEMENT

163cm3

COMPRESSION RATIO

8.5:1

NET POWER

3.6kW (4.8HP) at 3,600rpm

CONTINUOUS RATED POWER

2.9kW (3.9HP) at 3,600rpm

MAXIMUM NET TORQUE

10.3Nm at 2,500rpm

IGNITION SYSTEM

Transistorised magneto ignition

STARTING SYSTEM

Recoil (Electric Starter Optional)

COOLING SYSTEM

Forced-Air

PTO SHAFT ROTATION

Counter-clockwise (from P.T.O. side)

FUEL CONSUMPTION AT RATED POWER

1.4 L/h at 3,600rpm

RECOMMENDED FUEL

Unleaded

LUBRICATION SYSTEM

Splash

RECOMMENDED OIL

10W/30 API SG

OIL CAPACITY

0.6L

FUEL TANK CAPACITY

3.1L

DIMENSIONS

312 x 362 x 346mm

DRY WEIGHT

15kg
