Price: $982 Inc
Price: | $982 Inc |
Engine Type: | GX200 |
Fuel Capacity: | 3.1 Litres |
Given our huge range of Honda small engines please contact us about other options
COMMON APPLICATIONS

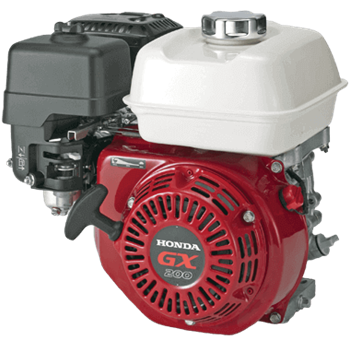

Honda’s GX series engines are legendary for superior reliability and performance. And there’s no doubt about it: the GX200 lives up to the legend. Lower noise levels, lower vibration, and lower emissions – without sacrificing power output or performance.
Common applications include pressure washers, generators, construction, industrial and agricultural equipment.
FUEL EFFICIENT, HIGH OUTPUT OPERATION
The GX200's Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency. It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for when and where you need it.
And the GX200 incorporates a high compression ratio for better fuel efficiency.
SMOOTH OPERATOR
The GX200 ball bearing-supported crankshaft, cast iron cylinder sleeve, Helical cut gears and precision engineered components result in greater stability and lower vibration for you while operating. The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine that make operation over long periods of time effortless.
The GX200 comes with a variety of features aimed at making it easy to maintain and in turn, extending the life of the engine. The oil alert, large fuel tank, easily accessible spark plug and large fuel cap are just some of the features that make using this engine easy to operate and care for.
WARRANTY
This product comes with a 4-year domestic warranty* or a 3-year commercial warranty. With regular servicing by a Honda authorised dealer and using Genuine Honda Spare Parts it will work hard for many years.
Honda has a comprehensive dealer network that covers all of New Zealand with highly trained technicians and knowledgeable sales staff to help you make the right choice first time.
Contact us or enquire below
MODEL |
GX200 |
TYPE |
4-stroke, overhead valve, single-cylinder, horizontal shaft |
BORE & STROKE |
68 x 54mm |
DISPLACEMENT |
196cm3 |
COMPRESSION RATIO |
8.5:1 |
NET POWER |
4.1kW (5.5HP) at 3,600rpm |
CONTINUOUS RATED POWER |
3.7kW (5.0HP) at 3,600rpm |
MAXIMUM NET TORQUE |
12.4 Nm at 2,500rpm |
IGNITION SYSTEM |
Transistorised magneto ignition |
STARTING SYSTEM |
Recoil (Electric Starter Optional) |
COOLING SYSTEM |
Forced-Air |
PTO SHAFT ROTATION |
Counter-clockwise (from P.T.O. side) |
FUEL CONSUMPTION AT RATED POWER |
1.7 L/h at 3,600rpm |
RECOMMENDED FUEL |
Unleaded |
LUBRICATION SYSTEM |
Splash |
RECOMMENDED OIL |
10W/30 API SG |
OIL CAPACITY |
0.6L |
FUEL TANK CAPACITY |
3.1L |
DIMENSIONS |
313 x 376 x 346mm |
DRY WEIGHT |
16.2kg |
