Price: $600 Inc

Price: $600 Inc
Engine Type: GX35
Fuel Capacity: 0.65 Litres



Given our huge range of Honda small engines please contact us about other options



COMMON APPLICATIONS

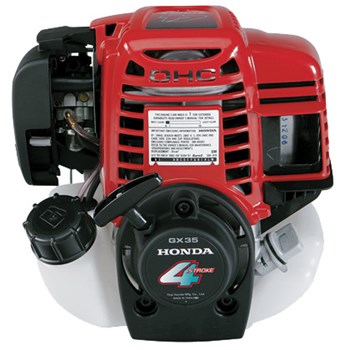

The gutsy, ultra-lightweight GX35 Mini 4-Stroke efficiently delivers the kind of powerful, quiet performance that you’d expect from a larger engine – but in a very compact package.

The GX35 is used by commercial gardeners and groundskeepers throughout New Zealand. It's and engine used to power many lawn & garden equipment. It's also well-known for powering Tillers/Cultivators, Water Pumps, Agricultural Equipment and Construction/Industrial Equipment.

ADVANCED TECHNOLOGY

The world's lightest OHC engine, the Honda Mini 4-stroke engine requires no fuel/oil mixing, and runs at approximately half the operating cost of comparable 2-stroke engines.

A full 360° 'any-side-up' operation allows you to use and store the GX35 in any position, taking advantage of the exclusive rotary-slinger lubrication system. The carburetor is equipped with an accelerator pump for fast, easy acceleration, and an efficient port configuration and large diameter valves maximise power output.

PROVEN RELIABILITY

An exhaust decompression system and unique low inertia design means the GX35 will start 'first time every time'.

Maintenance is made easy with an accessible spark plug and simple drainage and refilling of oil. High quality materials, fit, and finish ensure that your GX35 Mini 4-Stroke can be relied upon whenever you need it.



MODEL

GX35TSAU

TYPE

4-stroke, overhead cam, single-cylinder, horizontal shaft

BORE & STROKE

39 x 30mm

DISPLACEMENT

35.8cm3

COMPRESSION RATIO

8.0:1

NET POWER

1.0kW (1.3HP) at 7,000rpm

MAXIMUM NET TORQUE

1.6 Nm (1.2 lbs ft) at 5,500rpm

IGNITION SYSTEM

Transistorised magneto ignition

STARTING SYSTEM

Recoil Starter

COOLING SYSTEM

Forced-air

PTO SHAFT ROTATION

Counter-clockwise (from P.T.O. side)

FUEL CONSUMPTION AT RATED POWER

0.71 L/h at 7,000rpm

RECOMMENDED FUEL

Unleaded

LUBRICATION SYSTEM

Oil Mist

RECOMMENDED OIL

10W/30 API SG

OIL CAPACITY

0.1L

FUEL TANK CAPACITY

0.65L

DIMENSIONS

198 x 234 x 240mm

DRY WEIGHT

3.33 kg (w/o clutch)



This product comes with a 2 year domestic warranty and with regular servicing by a Honda authorised dealer and using Genuine Honda Spare Parts it will work hard for many years.

Honda has a comprehensive dealer network that covers all of New Zealand with highly trained technicians and knowledgeable sales staff to help you make the right choice first time.

CONDITIONS OF WARRANTY
