Price: $4,159 Inc
| Price: | $4,159 Inc |

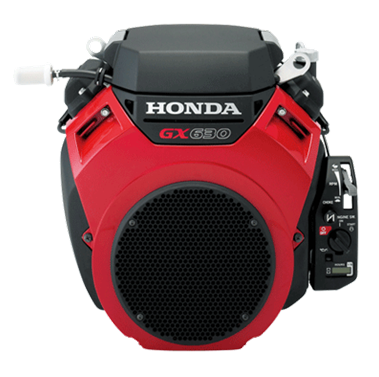

| Engine Type: | GX630 |
Given our huge range of Honda small engines please contact us about other options
APPLICATIONS
Honda's V-Twin range of engines are the cream of the crop, powering pressure washers, water pumps and commercial lawncare equipment.
The GX630 V-Twin can also be found in cultivators, agricultural equipment and generators as well as heavy-duty forestry and industrial industries.
FUEL EFFICIENT OPERATION
The fuel economy of the GX630 V-Twin is similar to fuel injection, with the simplicity of carburetion ensuring that running this unit is easy on both your pocket and the environment.
It features a digital CDI ignition system with variable timing, as well as a forged steel crankshaft and insert style rod bearings for efficient operation. There's also a rev limiter to protect against damage from over-revving.
Add a two barrel inner-vent carburetor for more precise fuel metering and a 9.3:1 compression ratio, and you'll be generating high power output without the need for premium fuel.
PROVEN RELIABILITY
The GX630's high capacity pump facilitates consistent oil delivery, and a handy oil alert will help protect your motor from running dry.
There's a dual cylindrical air filter, and a large diameter air intake on board for superior cooling.
The result is a long-lasting, high-performing and reliable engine.
|
PRODUCT CODE |
GX630RHQZB3 |
|
MODEL |
GX630 |
|
TYPE |
Air cooled 4-stroke OHV petrol engine, 90° V-twin design, horizontal shaft |
|
BORE & STROKE |
2 / 78 x 72 mm |
|
DISPLACEMENT |
688cm3 |
|
COMPRESSION RATIO |
9.3:1 |
|
NET POWER |
15.5 kW (20.8 HP) / 3 600 pm |
|
CONTINUOUS RATED POWER |
10.5 kW (14.1 HP) / 3000rpm 12.0 kW (16.1 HP) / 3600rpm |
|
MAXIMUM NET TORQUE |
48.3Nm / 4.93kgfm / 2500rpm |
|
IGNITION SYSTEM |
Digital CDI with variable ignition timing |
|
STARTING SYSTEM |
Electric starter |
|
COOLING SYSTEM |
Forced-Air |
|
FUEL CONSUMPTION AT RATED POWER |
6.0 L/hr - 3600rpm |
|
RECOMMENDED FUEL |
Unleaded |
|
LUBRICATION SYSTEM |
Full-pressure |
|
OIL CAPACITY |
1.9L |
|
DIMENSIONS |
405 x 410 x 438mm |
|
DRY WEIGHT |
44.4kg |
This product comes with a 3-year commercial warranty. With regular servicing by a Honda authorised dealer and using Genuine Honda Spare Parts it will work hard for many years.
Honda has a comprehensive dealer network that covers all of New Zealand with highly trained technicians and knowledgeable sales staff to help you make the right choice first time.
